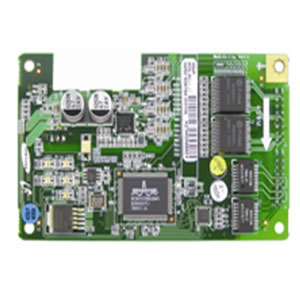

4SWM (DATA MODULE

The OfficeServ 7100 supports one enterprise class data module. The 4SWM can be combined in the same cabinets with the telephone system cards to provide a converged voice and data solution. 4SWM, which is a data board of OfficeServ 7100, provides 10/100 BASE-T interface and performs the Layer2 Switch function as the data transmission/reception board to/from a LAN. When installed, the 4SWM module provides connection for four (4) PoE ports off the front panel of the MP10 card. These ports can be used to connect ITP phones, WAPs, SP-Net, LAN printers, PC programming, uplink to other data switches or any other Ethernet devices. This module may be used in conjunction with the licensed MGI channels when providing IP telephony services. This module can only be installed on the optional daughter board slot on the MP10 card. See installation manual for details.

The main functions of the 4SWM board are as follows:

•      Auto-detection function of 10/100 BASE-T and Full/Half duplex

•       802.1p and VLAN function to support QoS

•      Layer 2 Switch function

Power constraints must be taken into consideration when plugging ITP phones and WAP devices into the 4SWM PoE module.
