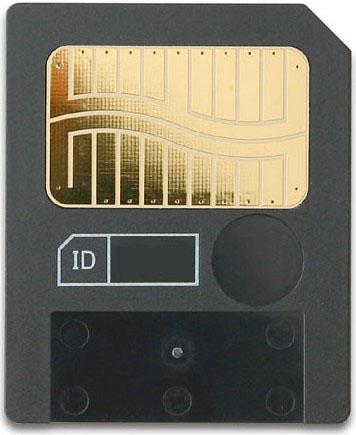

Samsung OfficeServ 7100 Smart Media Card OS7100SD10A

Hover over image to zoom

  • Image 1
In Stock
Calculated at checkout
Request Quote

 Product Description

The system operates using stored program control. This program is stored on a 256MB Multimedia Plus (MMC+) card inserted into the Main  Processor card (MP10A). The MMC+ card also provides space for a backup customer database and voicemail storage. The customer database is stored indefinitely in NAND Flash. 2MB of  SRAM backed up by a super capacitor stores information such as Call Logs, Alarms, UCD call statistics, program logs and traffic reports up to 24 hours without main system power.



This is the main processor controlling system operation. The MP10A always goes in slot 0 of the main cabinet. The MP10A provides a LAN connection, a MISC port (external page, MOH/BGM, loud/common bell), an SIO port (Samsung Maintenance Only), four universal ports for either digital phones or power of Ethernet ports (dependant on the type of daughterboard module plugged in), a internal modem slot, and a multimedia card (MMC+) slot which can accommodate a 256MB card containing the system software. The MP10 also includes embedded Automated Attendant,Voicemail, and MGI channels (license key required).The MP10 card cannot migrate to the OfficeServ 7200 or OfficeServ 7400 systems.

The MP10A have a connector for mounting either a 4DLM card or a 4SWM card. When the 4DLM card is installed on the processor it will provide an interface for 4 Digital telephone sets. When the 4SWM card is  installed on the processor it will provide an interface for 4 power over ethernet (POE) ports. The MP10A also has a connector for mounting the optional modem board. This modem board can be used for remote access to system administration at installation that do not have a LAN or WAN connection. This is the same modem card used in the other OfficeServ systems. If the 4SWM is installed the switch and LAN is automatically connected by way of the backplane. In addition it may be used as a backup for LAN connectivity.

 Warranty Information

New 5 Years
